The Importance of Series and Parallel Connection in Solar Modules

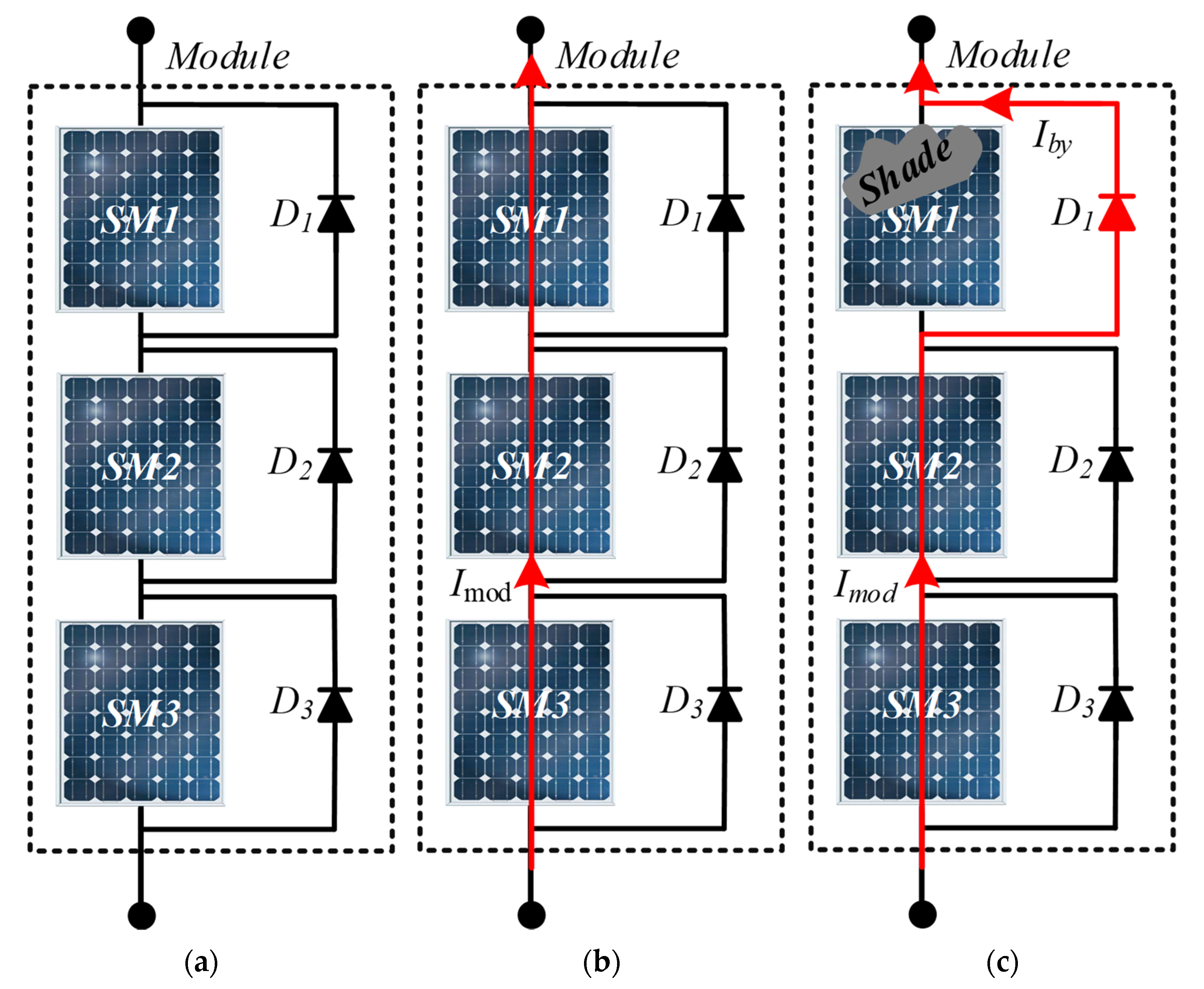

When it comes to solar modules, understanding the concepts of series and parallel connection is crucial for optimizing the performance of a solar PV system. In small modules, cells are typically placed in series to ensure that parallel mismatch is not a significant issue. On the other hand, when it comes to large arrays of modules, the mismatch usually occurs at a module level rather than at a cell level.
Series Connection
In a series connection, the positive terminal of one solar cell is connected to the negative terminal of the next cell, and so on. This configuration allows the voltages of each cell to add up, resulting in a higher total voltage output. However, it’s essential to note that the current remains the same across all cells in a series connection.
Parallel Connection
Contrary to series connection, in a parallel connection, the positive terminals of all cells are connected together, as are the negative terminals. This setup ensures that the voltages across all cells are equal, while the currents add up. In a parallel connection, the total voltage output remains the same as that of a single cell, but the total current output increases.
Key Equations for Cells or Modules in Parallel
When cells or modules are connected in parallel, the following equations apply:
V1 = V2 (Voltages are equal)
IT = I1 + I2 (Total current is the sum of individual currents)
Understanding how to properly connect solar cells and modules in series and parallel configurations is essential for designing an efficient and effective solar PV system. By optimizing the connections, it is possible to maximize the power output and overall performance of the system.
